Right Group
Overview
A Right Group is a logical grouping of rights that defines specific permissions for users in the system. These rights are centrally managed in the Rights Central Registry to ensure consistency and reusability across the application. Right Groups enable streamlined permission management by associating predefined sets of rights with users or roles.
Integration with Rights Central Registry
The Rights Central Registry serves as the single source of truth for all rights in the system. Right Groups interact with this registry to:
- Retrieve available rights.
- Dynamically update or create groups as new rights are added.
- Ensure consistent rights definitions across all modules.
Structure of Right Groups
Please view the structure accessible via Swagger UI.
CRUD Operations
1. Create Right Group
To create a right group, select the required rights from the registry and associate them with the group.
Workflow
- Fetch available rights from the Rights Central Registry.
- Define the group structure and selected rights.
- Use the service layer to save the group.

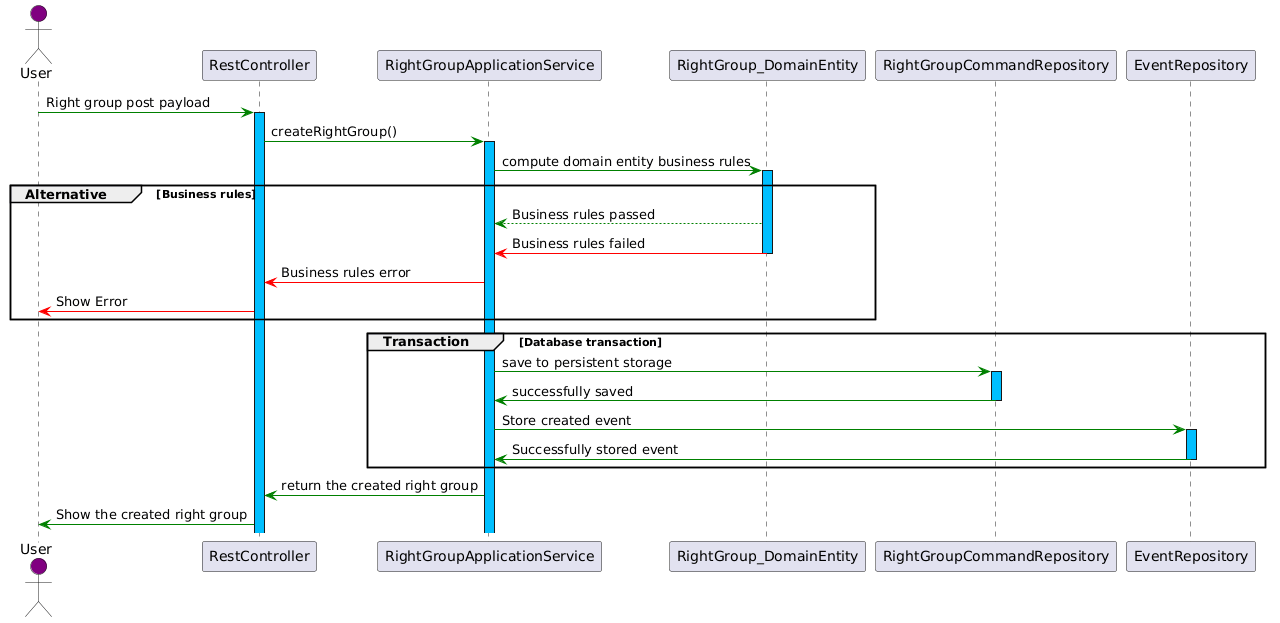

Create right group sequence diagram
2. Update Right Group
To update a right group, select the required rights from the registry and associate them with the group.
Workflow
- Fetch available rights from the Rights Central Registry.
- Define the group structure and selected rights.
- Use the service layer to save the group.

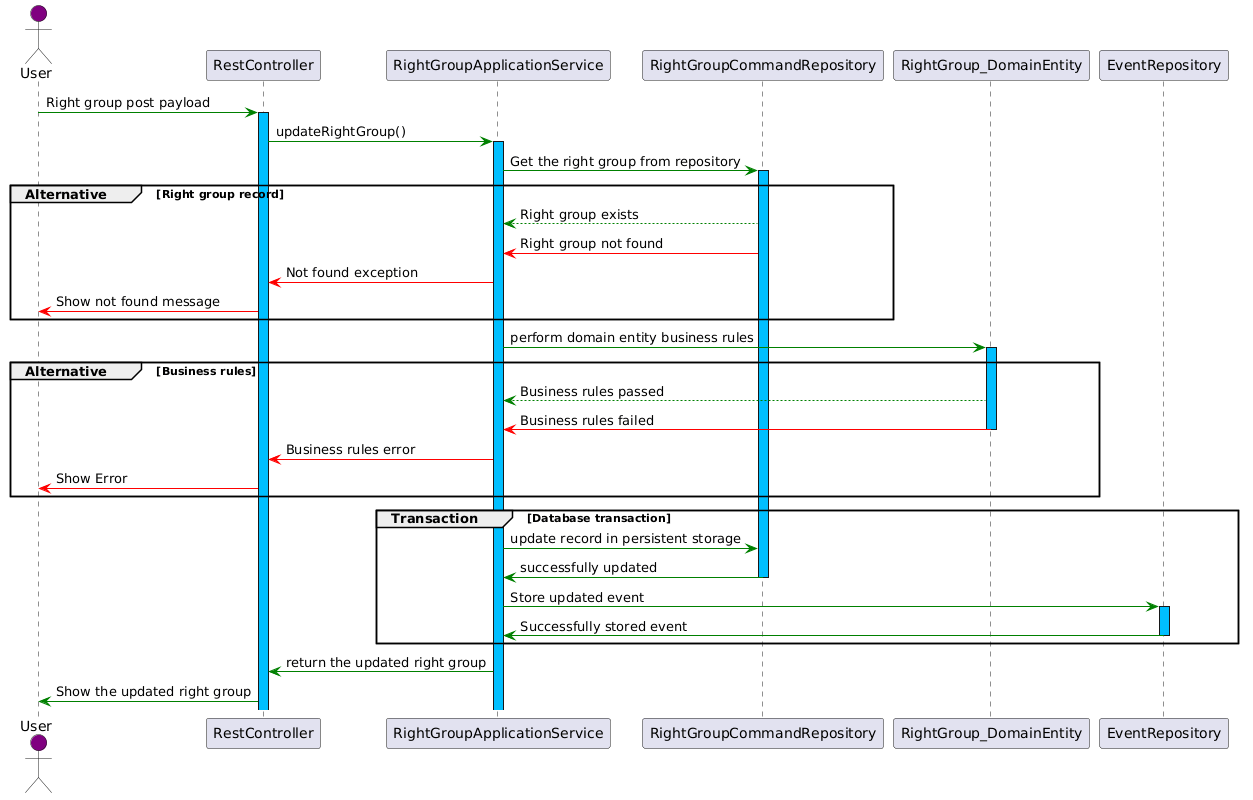

Update right group sequence diagram

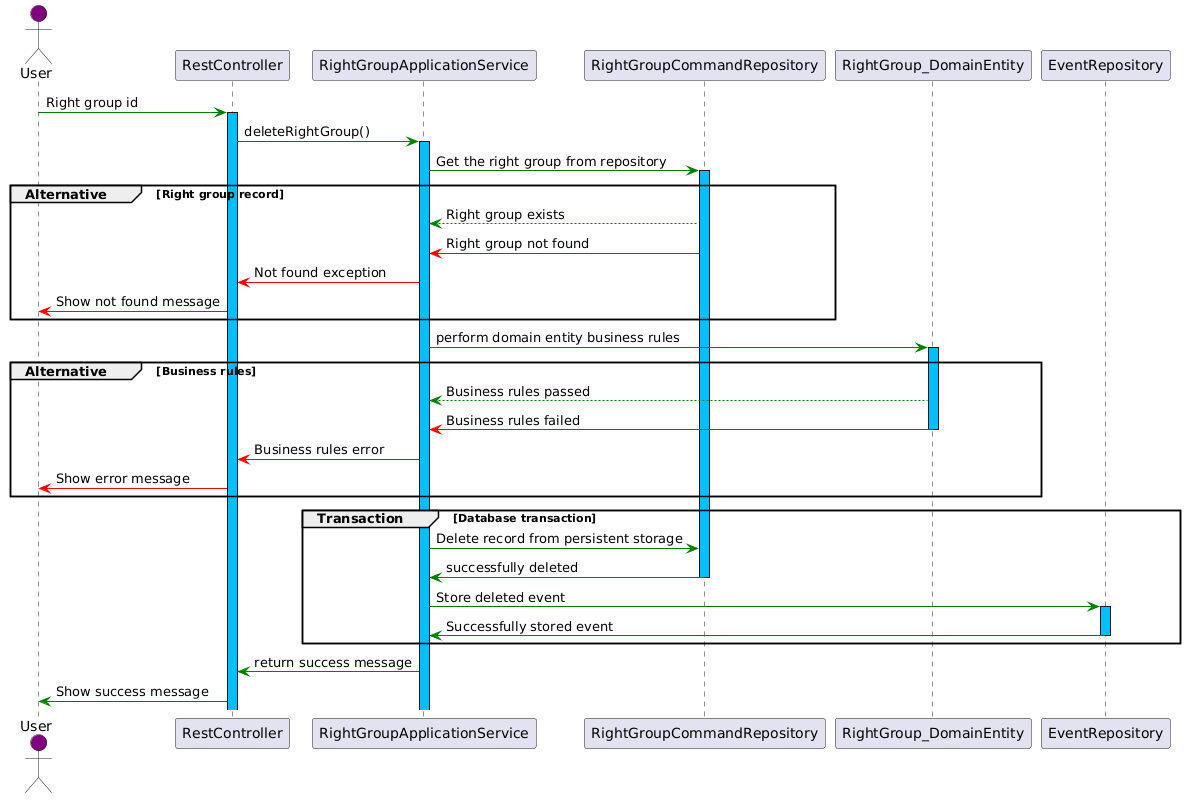

3. Delete Right Group
To delete a right group, provide the right group id to the service layer for processing
