Key Concepts

This section provides detailed explanations of the essential concepts and patterns that underpin the application's architecture and functionality.

Rights-Based Access Control and the Rights Registry​

  • Overview:
    The application uses a rights-based approach to manage access control, ensuring fine-grained permissions for different functionalities.

    • Rights are individual permissions (e.g., USER_CREATE_USER, DONATION_DONATE) registered in the Rights Central Registry.
    • Roles are collections of rights that dictate what a user or group can perform.

  • Rights Central Registry:

    • A central repository where each module registers its specific rights.
    • Promotes modularity and scalability by decoupling rights from roles.
    • New functionality only requires registering additional rights, eliminating the need to modify roles or core configurations.

  • Example:
    User Module Rights:

    • USER_LIST_USERS: Allows fetching a list of all users.
    • USER_CREATE_USER: Allows creating new users.

    Donation Module Rights:

    • DONATION_DONATE: Allows a user to make a donation.
    • DONOR_TOPUP: Allows wallet top-ups.

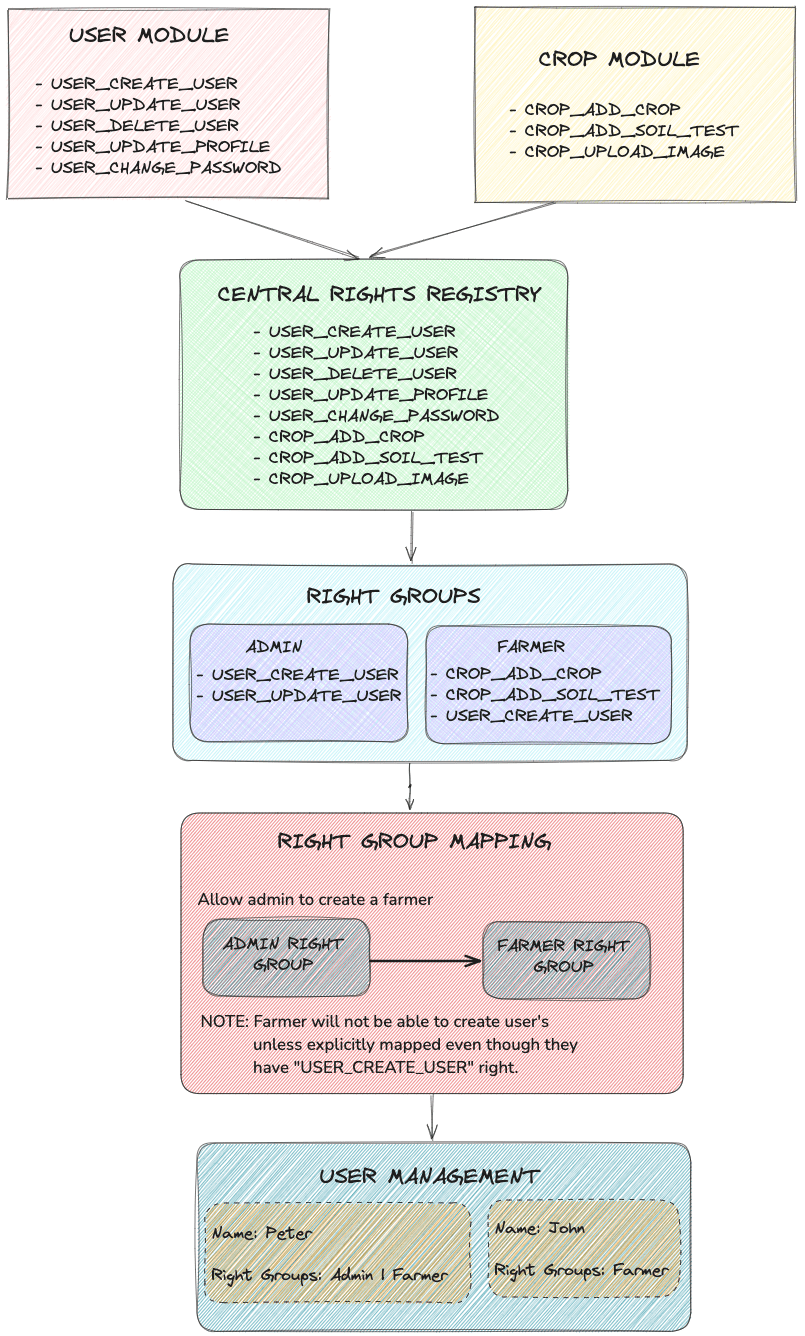

Central Registry Diagram

Outbox Pattern for Event-Driven Reliability​

  • Overview:
    The application uses the Outbox pattern to ensure reliable event-driven communication.

    • Events are first stored in an Outbox Table within the database as part of the same transaction as the data change.
    • A dedicated scheduler processes these outbox entries and dispatches events to the message broker.

  • Advantages:

    • Guarantees at-least-once delivery by decoupling event generation from event dispatch.
    • Enables resilience in case of transient failures in the message broker.

  • Implementation:

    • Scheduler and producer components are abstracted in the Messaging Module.
    • Modules annotate methods with @MessageConsumer to start receiving events.

Dependency Injection and Spring Boot Annotations​

  • Overview:
    The application heavily relies on Spring Boot for its dependency injection and modularity.

  • Core Annotations:

    • @Component, @Service, @Repository: For defining beans with specific roles.
    • Constructor Injection: For injecting dependencies automatically.
    • @Configuration: For defining custom configurations.

  • Advantages:

    • Reduces boilerplate code by managing object lifecycle and dependency resolution.
    • Improves testability by supporting mock dependencies.

  • Best Practices:

    • Prefer constructor injection for mandatory dependencies.
    • Use @Qualifier for injecting specific beans when multiple implementations exist.

Error Handling and Logging Standards​

  • Overview:
    Centralized error handling and consistent logging improve maintainability and debugging.

  • Error Handling:

    • GlobalExceptionHandler in the user-application module centralizes error responses.
    • Exceptions are normalized for HTTP responses using @ControllerAdvice.

  • Logging Standards:

    • Logs are categorized by levels: INFO, WARN, ERROR, DEBUG.
    • Use structured logging for easier search and analysis in log aggregation tools (e.g., ELK stack).

  • Best Practices:

    • Log all unexpected exceptions with sufficient context (e.g., user ID, request details).
    • Avoid logging sensitive information (e.g., passwords, tokens).

These concepts form the foundation of the application's architecture and ensure it is robust, secure, and scalable. Developers should understand and adhere to these principles when contributing to the project.
